| Brand Name : | SupAnchor |
| Model Number : | R51/950 |
| Certification : | ISO, SGS, ITB, IBDIM |
| Price : | 1 - 30 USD |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200,000 meters per month |
| Delivery Time : | 1 to 6 weeks |
Features

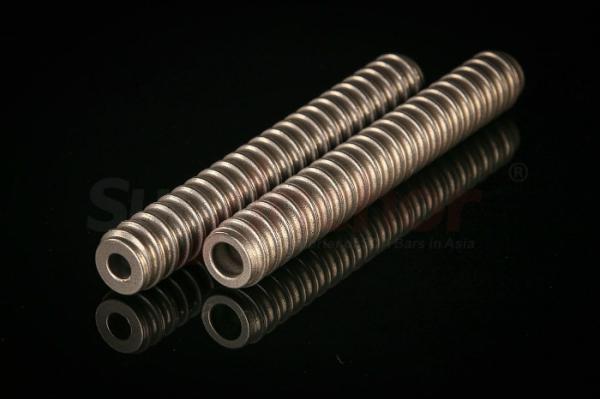

SupAnchor® has achieved the security application of 30,000,000 meters self-drilling anchor bar in the world. The anchor body is made of a hollow steel tube with an outer round thread. Steel tube has the sacrificial drill bit at one end and the corresponding nut with a steel end plate.
The self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.
Applications
1. Spilling
2. Foundation for avalanche protect
3. Stabilization of tunnel portals
4. Radial systematic anchoring
5. Soil nailing
6. Mining
7. Slope stabilization
Technical Data
| Anchor Rod | R51L/36 | R51L/34 | R51N/33 | R51N/31 | R51/950 | R51/660 |
| Outside Diameter (mm) | 51cc | 51 | 51 | 51 | 51 | 51 |
| Internal Diameter (mm ) | 35.5 | 34 | 33 | 30.6 | 30.6 | 33 |
| Cross sectional area (mm2) | 802 | 890 | 968 | 1070 | 1070 | 968 |
| Ultimate load (kN) | 550 | 550 | 800 | 800 | 950 | 660 |
| Load at 0.2% Yield (kN) | 450 | 450 | 630 | 630 | 760 | 540 |
| Weight (kg/m) | 6.30 | 7.00 | 7.60 | 8.40 | 8.40 | 7.60 |
| Type of steel | 40Cr / 20Cr / Q345B | |||||
| Elongation % | Agt ≥ 5%, A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ... | |||||
| Thread type | ISO 1720 - R51 / Left or Right | |||||
| Length (m) | (1) x 2, x3, x4, | |||||
| cOptions of Anti-corrosion | Hot-dipped Galvanization / Epoxy Coating / SupCoat Impact properties up to standard ASTMD 2794; | |||||
Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
|
|
