    280kN 0.86Kg/M Self Drilling 28mm Rock Anchor Bolts For Slope Stabilization

    Ask Lasest Price
    Brand Name : SupFRP
    Model Number : H28S
    Certification : ISO, SGS, NATA
    Price : 1 - 30 USD
    Payment Terms : L/C, T/T
    Supply Ability : 50,000 meters per month
    Delivery Time : 1 to 6 weeks
    • Product Details
    • Company Profile

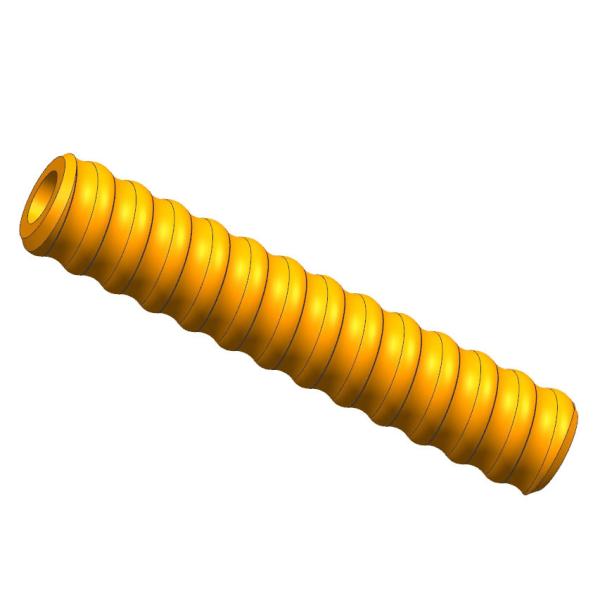

    280kN 0.86Kg/M Self Drilling 28mm Rock Anchor Bolts For Slope Stabilization


    28mm Outside Diameter Self Drilling Rock Anchor Bolts In Slope Stabilization


    Features

    The SupFRP® GFRP SDA Bolt fully threaded resin anchor glass fiber reinforced bolt body is formed by heating and curing of glass fiber yarn, resin and curing agent. The shape of the anchor rod body is full thread. GFRP SDA bolt can be used in soft rock or clay soil, for the reinforcement of the face of the tunnel or for slope stabilization. Furthermore the cuttability protects the machinery by avoiding obstructions while drifting or enlarging tunnels.

    Applications

    1.Slope stabilization

    2. Forepoling
    3.
    Face stabilization
    4. Ground support in soft rock

    Advantages

    1.R25/R28/R32/R38

    2. Super high torque resistance

    3. High end loading

    4. Easy handing

    6. ISO standard thread profil

    Technical data

    GFRP SDA BoltH25SH28SH32SH38S
    Outside Diameter (mm)*125283238
    Internal Diameter (mm)12141520

    Nominal Cross sectional

    carea (mm2)*2

    250310400540
    Guaranteed tensile load (kN)220280365490
    Tensile E-Modulus (GPa)45454545
    Torsion Strength (Nm)18025036O450
    Ultimate Strain2.0%
    Weight (kg/m)0.630.860.991.33
    Thread type(ISO)R25R28R32R38
    Length (m)(1) x 2, x3, x4, x5, x6, x7, x8, x9, x10, x11,

    Accessories

    Application

    Application



    SubNumbers


    10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

    20 Years - 20 years of exporting experience, familiar with different product standards from different

    customers and countries.

    26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

    manufacturer in Asia.

    60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

    customers from 50 countries all over the world, including America, Chile, Germany,

    Australia India, etc.

    1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
