| Brand Name : | SupAnchor |
| Model Number : | T103/51 |
| Certification : | ISO, SGS, ITB, IBDIM |
| Price : | 1 - 30 USD |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200,000 meters per month |
| Delivery Time : | 1 to 6 weeks |
SDA Groud Support T103/51 High Strength Self Drilling Rock Bolts
Features
SupAnchor is the No.1 manufacturer and exporter of self-drilling anchors in Asia. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.
Self drilling anchor bolt is installation under the conditions of the soil/rock with the risk of drill hole collapse due to pulling out of drill bit as in the classical anchor installation process.
Applications
1. Soil nailing
2. Foundation
3. Drains
4. Ground piling
5. Stabilization of tunnel portals
6. Micropiles
Advantages
1. Suits all ground conditions
2. Dynamic pressure grouted, casing free one step installation
3. Injection boring
4. Rapid, effective ground and structural stabilization (ground improvement)
Technical Data
| Micor Pile Bar | T103/78 | T103/51 |
| Outside Diameter (mm) | 103 | 103 |
| Internal Diameter (mm ) | 78 | 51 |
| Cross sectional area (mm2) | 3220 | 5680 |
| Ultimate load (kN) | ≥ 2280 | ≥ 3660 |
| Load at 0.2% Yield (kN) | ≥ 1800 | ≥ 2670 |
| Weight (kg/m) | 25.30 | 44.60 |
| Thread type | T103 International Standard / Continuously right hand threaded | |
| Type of steel | 40Cr / Q345B / S460NH | |
| Elongation % | Agt ≥ 5%, A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ... | |
| Length (m) | (1) x 2, x3, x4 | |
| Options of Anti-corrosion | Hot-dipped Galvanization / Epoxy Coating / SupCoat *Hot-dipped Galvanization: ISO 1461. *Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007. *SupCoat: HDG + EC | |

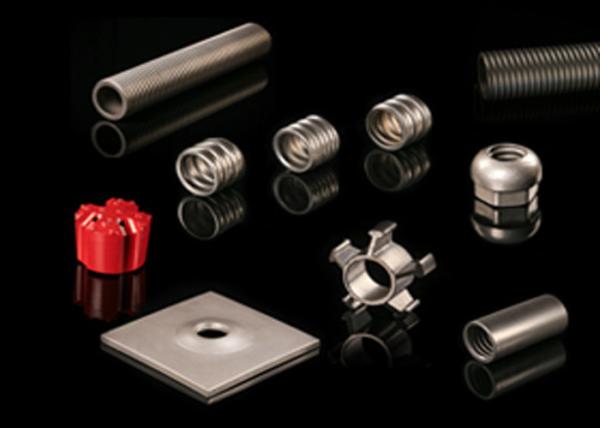

Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
has its own quality tracking systems. Every batch of anchor bar has
its unique batchNo.1 exporter of SDA bars in Asia, quality control has been always
SupAnchor’s biggest| Mechanical strength test ratio | >= | 3% |
| Dimensions test ratio | = | 100% |
| Surface inspection ratio | = | 100% |
|
|
