| Brand Name : | SupAnchor |
| Model Number : | T40/16 |
| Certification : | ISO, SGS, ITB, IBDIM |
| Price : | 1 - 30 USD |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200,000 meters per month |
| Delivery Time : | 1 to 6 weeks |

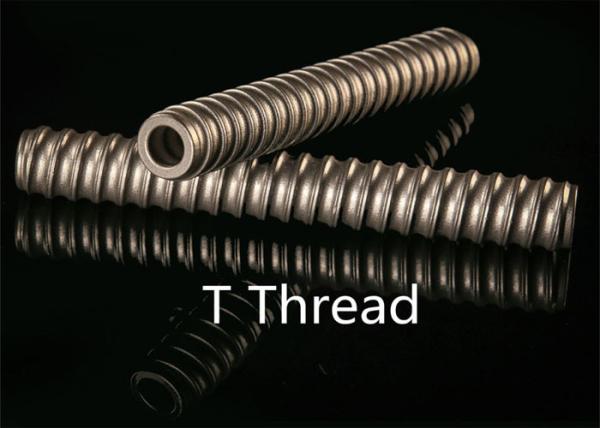

T40/16 Roof Support High Tensile Load Seld Drilling Rock Bolts In Tunneling
Features
SupAnchor is the No.1 manufacturer and exporter of self-drilling anchors in Asia. The system enables drilling and grouting in one operation, making much saving in jobsite and project time. SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The cement grout is most often used for injection of self-drilling anchor. The usual water-cement ratio ranges from 0,40 to 0,50.
Applications
1. Tunneling
2. Face stabilization
3. Radial systematic anchoring
4. Foundation for avalanche protect
5. Stabilization of tunnel portals
6. Root piling
7. Ground engineering
Technical Data
| Injection Bar | T40/20 | T40/16 |
| Outside Diameter (mm) | 40 | 40 |
| Internal Diameter (mm ) | 20 | 16 |
| Cross sectional area (mm2) | 713 | 910 |
| Ultimate load (kN) | 540 | 660 |
| Load at 0.2% Yield (kN) | 430 | 525 |
| Weight (kg/m) | 5.80 | 7.18 |
| Thread type | T40 International Standard / Left or Right | |
| Type of steel | 40Cr / Q345B / S460NH | |
| Elongation % | Agt ≥ 5%, A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ... | |
| Length (m) | (1) x 2, x3, x4 | |
| Options of Anti-corrosion | Hot-dipped Galvanization / Epoxy Coating / SupCoat *Hot-dipped Galvanization: ISO 1461. *Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007. *SupCoat: HDG + EC | |
Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
