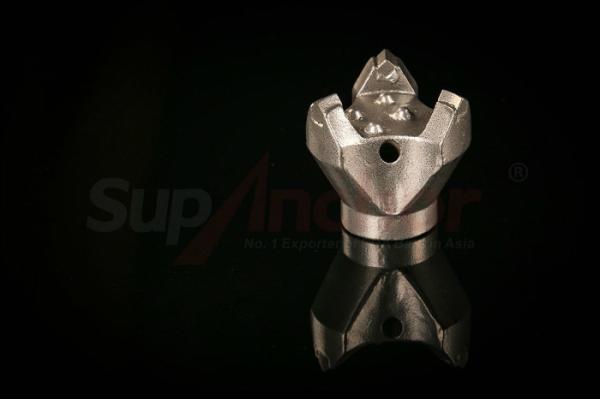

Casting Self Drilling Anchor Bar R32 Hardened Drop Centre Bit EY Type

Features

The self drilling anchor system provides advantages for all areas of its applications, where boreholes would require the time consuming drilling with casing systems in unconsolidated or cohesive soil. SupAnchor has been serving for customers from 60 countries and products are widely used by over 1,500 projects around the world.

Features and Advantages

Fits SupAnchor® standard Boomer, ROC and Mustang rigs. Particularly suitable for difficult ground conditions.

• A high rate of installation since drilling, placing and grouting can be performed in one single operation.

• Simple post grouting system.

• Self drilling system eliminates the requirement for a cased borehole.

• Installation with simultaneous drilling and grouting possible.

• Easy installation in all directions, also upwards.

• Suitable for working in limited space, height and in areas of difficult access.

Technical Data

R32 Drill Bit	EC	ECC	EY	EYY
	Hardened Arching Bit for unconsolidated rock with boulders	TC Arching Bit for soft to medium rock formations	Hardened Drop Centre Bit for fills	TC Drop Center Bit for competent ground & strong rock
Outside Diameter (mm) / Unit Weight (Kg)	D51 / 0.35 D76 / 1.16	D51 / 0.40 D76 / 0.85	D76 / 0.97 D100 / 1.35	D76 / 0.95 D90 / 1.40
Hardness	HRC 43-48	HRA 87-89	HRC 50-55	HRA 87-89
Thread Type	ISO 10208 - R32 / Left or right
Type of Steel	EN10083-3/2006
