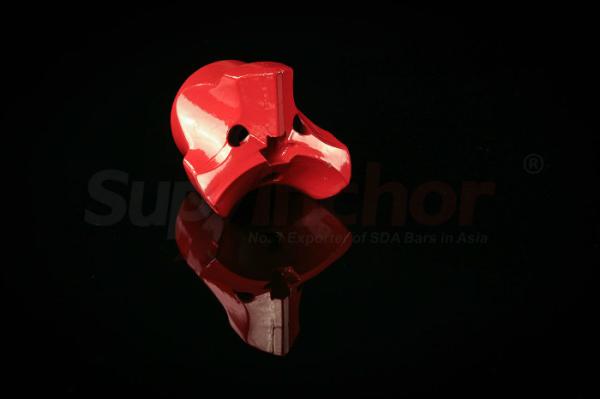

Tungsten Carbide Arching Bit For Self Drilling Anchor Bar R32 ECC Type

Features

SupAnchor is the No. 1 manufacturer and exporter of self drilling anchor systems in Asia and has been serving for customers from 60 countries and products are widely used by over 1,500 projects around the world.

Features and Advantages

Fits SupAnchor® standard Boomer, ROC and Mustang rigs. Particularly suitable for difficult ground conditions.

• A high rate of installation since drilling, placing and grouting can be performed in one single operation.

• Simple post grouting system.

• Self drilling system eliminates the requirement for a cased borehole.

• Installation with simultaneous drilling and grouting possible.

• Easy installation in all directions, also upwards.

• Suitable for working in limited space, height and in areas of difficult access.

Technical Data

R32 Drill Bit	EC	ECC	EY	EYY
	Hardened Arching Bit for unconsolidated rock with boulders	TC Arching Bit for soft to medium rock formations	Hardened Drop Centre Bit for fills	TC Drop Center Bit for competent ground & strong rock
Outside Diameter (mm) / Unit Weight (Kg)	D51 / 0.35 D76 / 1.16	D51 / 0.40 D76 / 0.85	D76 / 0.97 D100 / 1.35	D76 / 0.95 D90 / 1.40
Hardness	HRC 43-48	HRA 87-89	HRC 50-55	HRA 87-89
Thread Type	ISO 10208 - R32 / Left or right
Type of Steel	EN10083-3/2006

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

SupAnchor has its own quality tracking systems. Every batch of anchor bar has its unique batch

Being the No.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
